Ex-Or by Honeywell DALI Switch Input Module

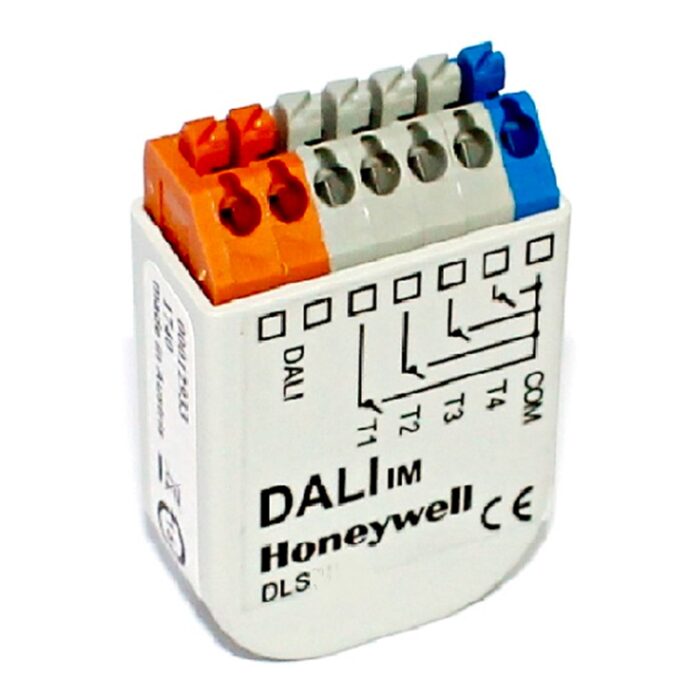

The DALI IM is a compact DALI device with 4 general purpose inputs. Multiple DALI IM modules can be connected to the same DALI bus, although a maximum of 2 modules is supported by a DALI in a room or DALI16 system. The module can be installed in a conduit box, backbox or pattress behind a momentary switch. The minimum required depth for a pattress box is 35 mm, however, 40 mm boxes are recommended for ease of wiring.

Specification

• Supply: via DALI bus
• Current consumption: 4.1 mA typical
• Ambient temperature: 0°C – 50°C
• Protection: IP20
• Wire size: 0.5 – 1.5 mm²
• Wire length to switches: 50 cm (max.)
• Output: DALI
• Input: 4 x push-to-make momentary switch
• Input current: <4 mA
• Dimensions: (H x W x D) 40 x 28 x 15 mm
