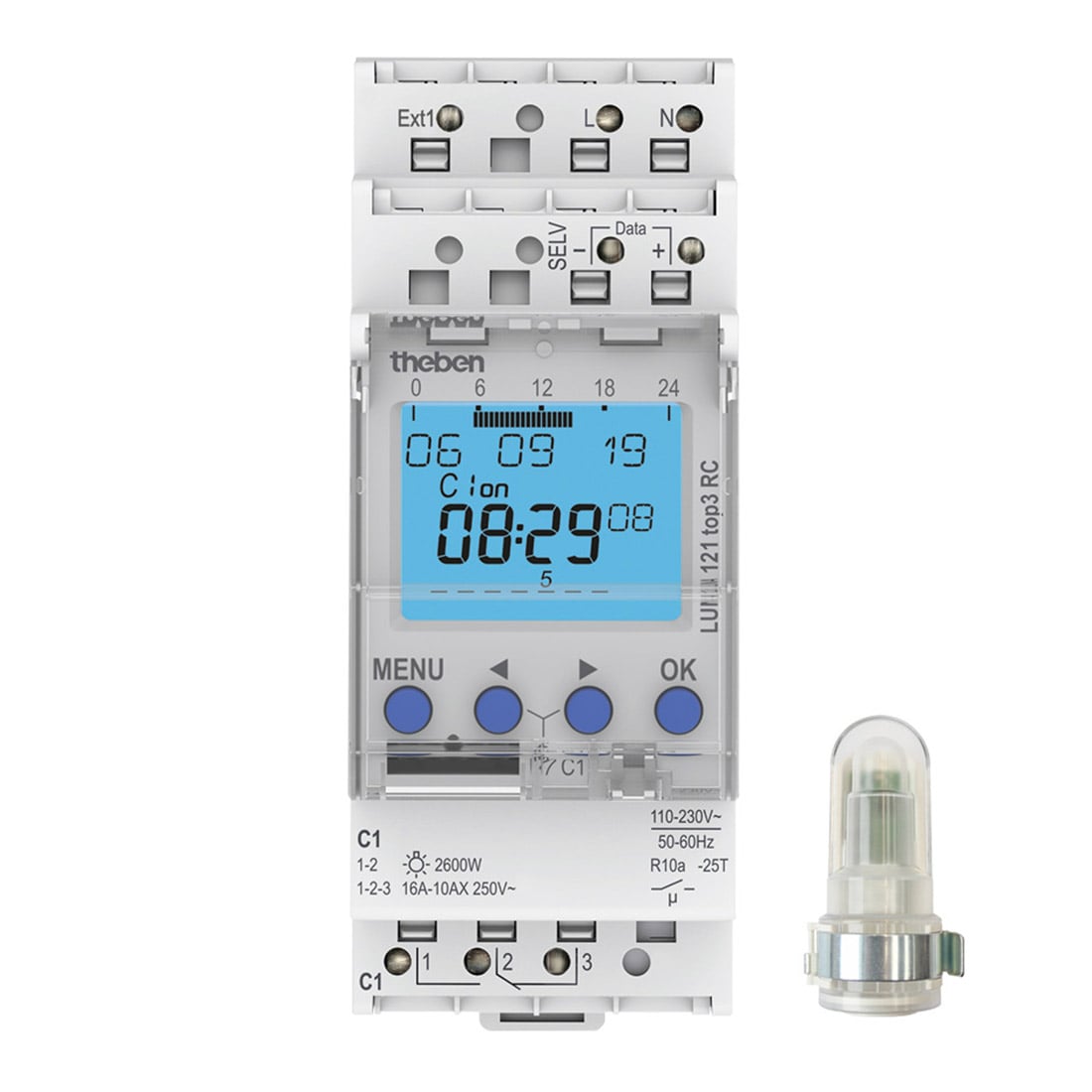

Ex-Or by Honeywell Two-Part Mains Photocell With Int Timer

Ex-Or by Honeywell Two-Part Mains Photocell With Int Timer is a Surface-mounted light sensor

• Twilight switch with integrated weekly timer
• External light sensor included in delivery
• 1 channel
• External input
• Time synchronisation option via connection of an external DCF or GPS antenna
• 3 special programs (small annual program)
• 84 memory locations
• Programming by app possible
• Safe transfer via optional Bluetooth Low Energy OBELISK top3
• Maximum manipulation security, time switch programs can only be transferred from the app to the device when the Bluetooth OBELISK top3 is plugged into the device
• Switching brightness digitally adjustable
• Adjustable On and Off switching delay
• Switching brightness and switching delay can be set separately for switching On and Off
• Onscreen display of channel and switching status as well as current lux value
• DuoFix spring terminals
• Zero-cross switching for relay-saving switching and high lamp loads
• Up to 4 sensors can be attached
• Up to 10 devices can be connected to a digital sensor
• Interface for OBELISK top2 memory card (PC programming)
• Extended brightness range
• Permanent switching ON/OFF
• Test function
• Switching preselection
• Display back light (can be turned off)
• PIN coding
• Operating hour counter
